WNRD2QJ

All products have CE FCC Certificate

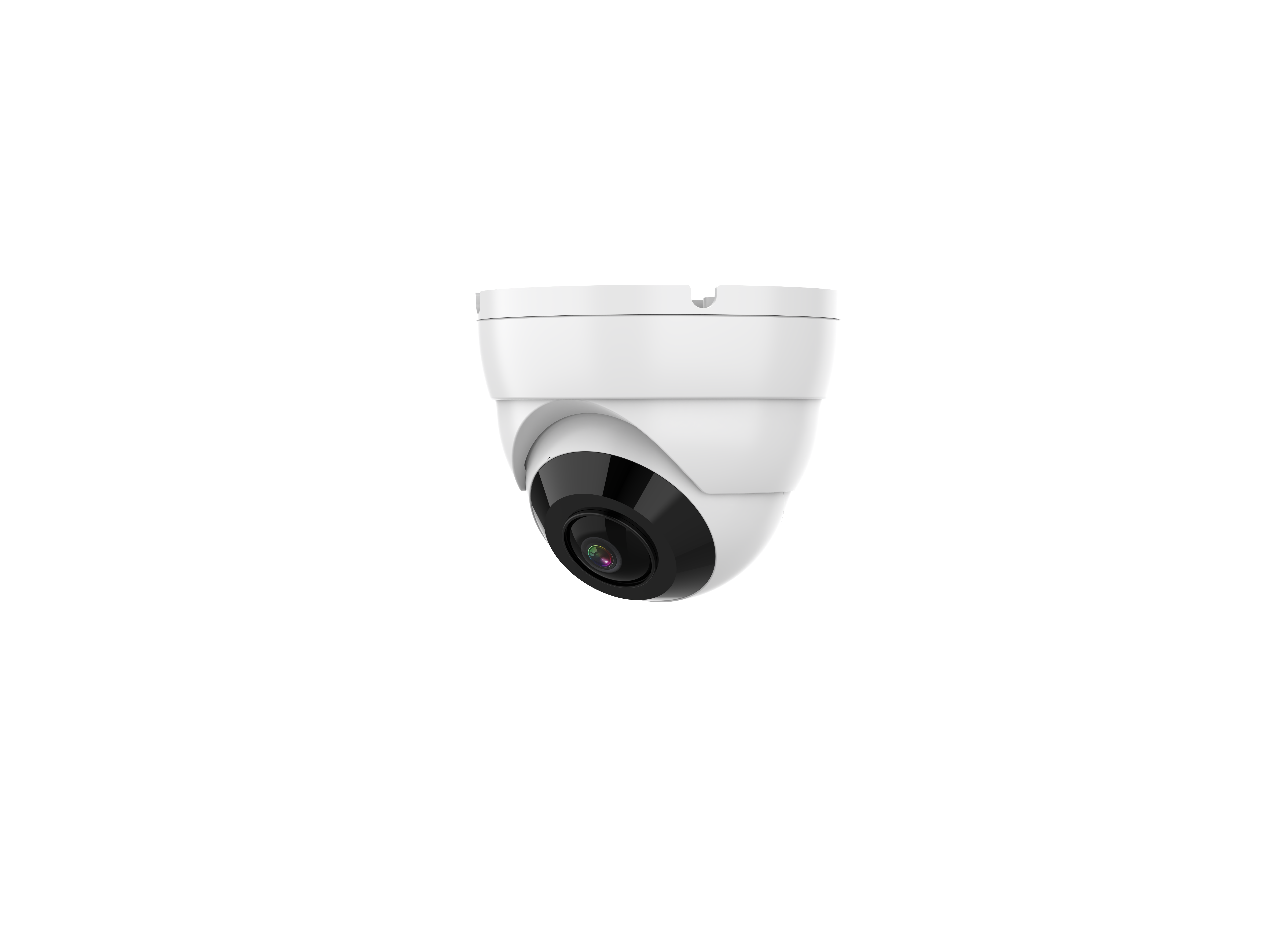

Panoramic Fish Eye IP Camera

● IP67 full Metal Turret

● H.265+/H.265/H.264+/H.264 Compression Method

● 5MP High Quality Image

● 1.8mm Wide Angle Lens

● 2PCS Array IR LED,up to 20m

● With Internal POE

● Built-in Microphone

Categories: HD network camera, Panoramic IP cameras

Get a Free Quote

WNRD2QJ

Specification
Model No.	WNRD2QJ-MS350AH
Camera
Image Sensor	1/2.8〞5MP SONY CMOS sensor
Image Format	4:3
Compression	H.264/H.264+/H.265/H.265+
TV System	PAL/NTSC
Electronic Shutter	Support automatic / manual mode
S/N Ratio	≥50dB(AGC OFF)
Video Output	Network
Scanning System	Progressive
Reset Button	Optional
Minimum Illumination	Color 0.07Lux@F1.2
Lens
Focus Length	1.8mm
Focus Control	Fixed
Lens Type	Board
Night Vision
IR Cut Filter	YES
Infrared LED	2PCS Array IR LED
Light Distance	Up to 20M
IR Status	AGC auto control
Network
Network Interface	1 RJ45 10 M/100 M adaptive Ethernet port
Audio port	One cable output, or an external power amplifier board can be directly connected to the speaker
Protocol	Support HTTP/RTSP/NTP/DHCP/ONVIF/P2P network protocol, optional GB28181, RTMP and various NVR docking protocols
ONVIF	support
P2P	yes
POE	support
Main Stream 1	25fps@(2592*1944）
Main Stream 2	30fps@(2560*1440（Default）
Sub Stream 1	30fps@(D1（default）
IE Brower	IE; HTML5 technology can support chrome75+, Firefox60+, Egde 44+, MacSafri 11+ and other browsers
Smart Phone	IPhone, Android
AI Function
Intelligent Analysis	motion detection based on human detection; report alarm information to the backend or App
Camera Features
Day/Night	Dual filter switcher, AUTO/B&W/EXT
Audio In	Built-in Microphone
OSD Menu	YES
UTC	YES
BLC	Support
WDR	DWDR
Motion Detection	Support
Privacy Masking	4 Zones
Regional Enhancement	8 Zones
Noise Reduction	Support 2D,3D noise reduction
Recording Mode	NVR/CMS/Web
Language	Chinese, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,Portuguese, Japanese, Turkish, Spanish, Italian
General Specification
Housing	Metal, IP67
Bracket	/
Operation Temperature	(-10℃ ~ +60℃ ) RH95% MAX
Storage Temperature	(-20℃ ~ +60℃) RH95% Max
Power Source	DC12V±10%, 450mA
Dimension	￠94*78
Weight	300g

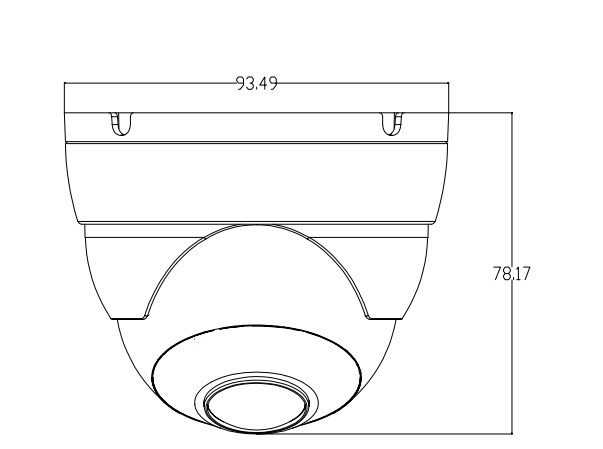

Drawing

Download

Easy IPC-WNRD2QJ

TYPE	INSTRUCTION	DESCRIPTION	EFFECTIVE DATA
.pdf	WNRD2QJ datasheet		2023-12-26

Related products

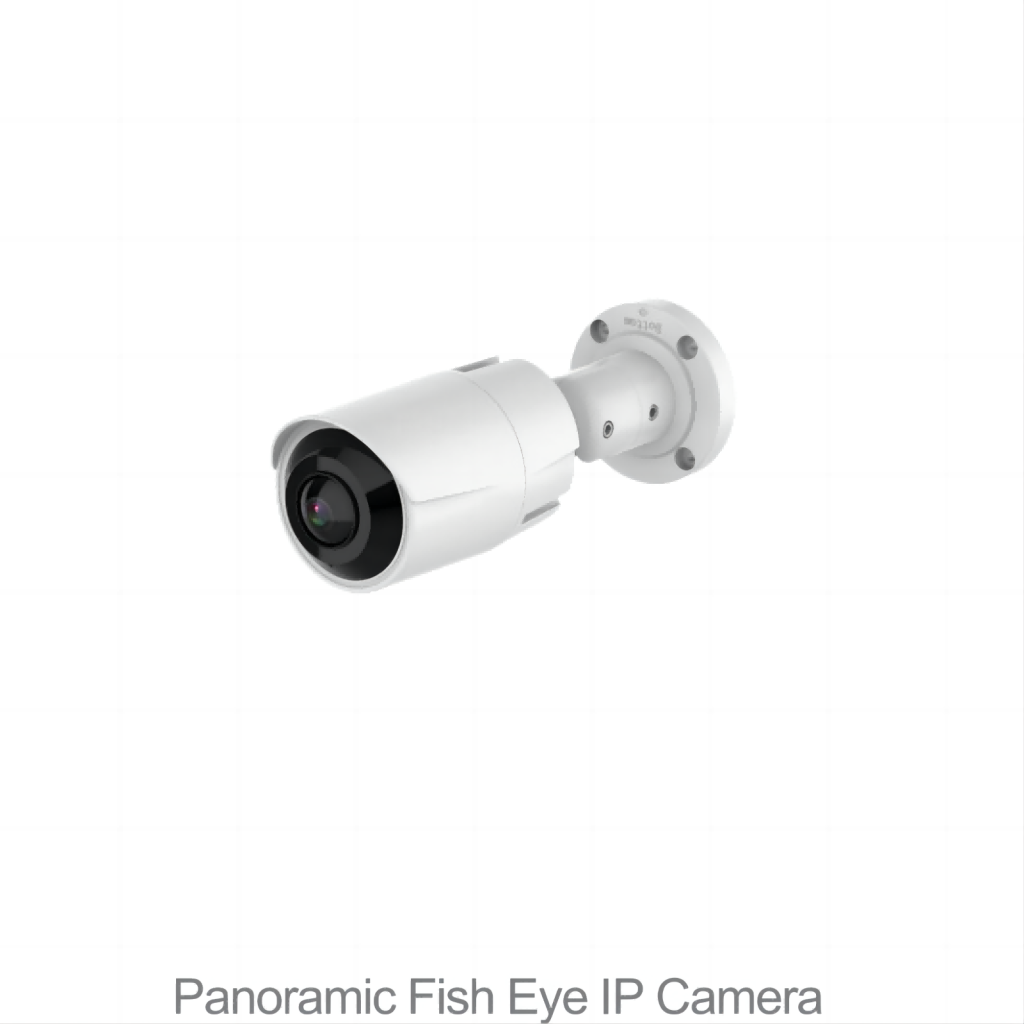

WNIKE2QJ
