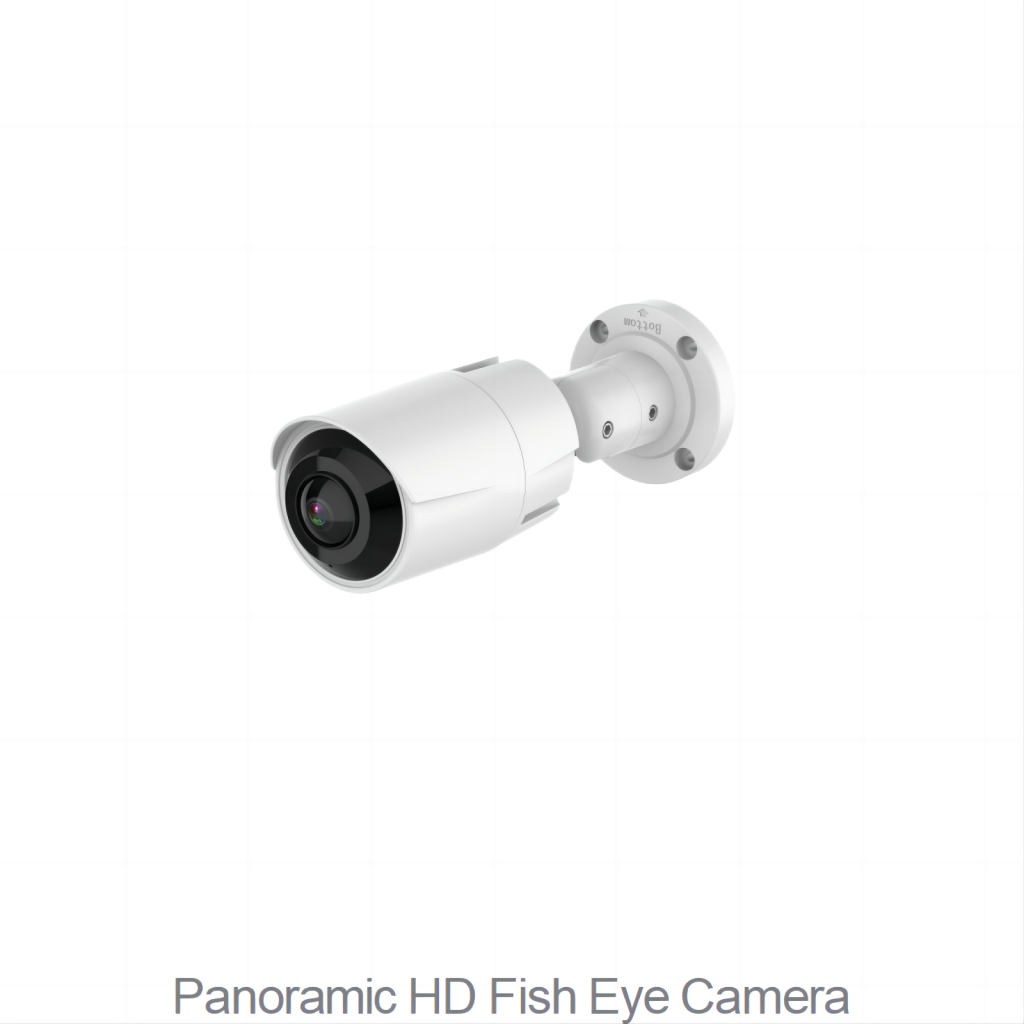

NRD2QJ

All products have CE FCC Certificate

● IP67 full metal Turret

● 2MP-5MP available

● 1.8mm 180°Wide Angle Lens

● 2pcs Array IR LED，up to 20m

Specification
Model No.	NRD2QJ-GCAT200H	NRD2QJ-GCAT500E
Video Output Mode	AHD/CVI/TVI/CVBS
Camera
Image Sensor	1/2.9″COMS Sensor	1/2.9″COMS Sensor
Image Resolution	2M:1920*1080	5M:2560*1944
TV System	PAL/NTSC
Electronic Shutter	Auto
Minimum Illumination	0.01Lux(F1.2)	0.1Lux(F1.2)
	B&W：0LUX
Lens
Focus Length	1.8MM 180° wide angle lens
Focus Control	Fixed
Lens Type	Fixed
Night Vision
IR Cut Filter	YES
Warm light	2pcs Array IR LED
Light Distance	Up to 20M
IR Status	CDS auto control
Camera Features
Day/Night	Dual filter switcher，AUTO/B&W/EXT
OSD Menu	YES
WDR	DWDR
UTC	YES
Noise Reduction	3-DNR
Coaxial Audio	/
White Balance	Auto/Manual
Gain Control	Auto
General Specification
Housing	Metal, IP67
Bracket	YES
Operation Temperature	(-10℃ ~ +60℃ ) RH95% MAX
Storage Temperature	(-20℃ ~ +60℃) RH95% Max
Power Source	DC12V±10%, 450mA
Dimension	￠105*63
Weight	300g

Drawing

NRD2QJ

TYPE	INSTRUCTION	DESCRIPTION	EFFECTIVE DATA
.pdf	NRD2QJ datasheet		2023-12-26
