NIFP60J

4-in-1 HD cameras

● IP67 Full metal bullet

● 2MP-5MP-8MP available

● 3.6mm Fixed Lens(2.8mm lens optional)

● 4PCS array  IR  LED, up to 20m

NIFP60J
Model No.NFP60J-GCAT200HBNFP60J-GCAT500ECNFP60J- SCAT800
Video Output ModeAHD/CVI/TVI/CVBS
Camera
Image Sensor1/2.9″COMS Sensor1/3″COMS Sensor1/2.8″SONY COMS Sensor
Image Resolution2M:1920*10805M:2560*19448M:3840*2160
TV SystemPAL/NTSC
Electronic ShutterAuto
Minimum Illumination0.01Lux(F1.2)0.05Lux(F1.2)0.01Lux(F1.2)
B&W:0LUX
Lens
Focus Length3.6mm/2.8mm optional
Night Vision
IR Cut FilterYES
Infrared LED4PCS array IR LED
Light DistancUp to 20M
Camera Features
Day/NightDual filter switcher,AUTO/Color/B&W/EXT
OSD MenuYES
WDRDWDR DWDRWDR
Noise Reduction3-DNRDNR3-DNR
AWBGRAY WORLD/ATW/MWBATW/MWBPRO/GRAY WORLD/ATW/MWB
MIRROR / FLIPCLOSE/OPEN
UTCYES
Gain ControlAuto
General Specification
HousingMetal, IP67
BracketYES
Operation Temperature(-10℃ ~ +60℃ ) RH95%  MAX
Storage Temperature(-20℃ ~ +60℃) RH95% Max
Power SourceDC12V±10%, 500mA
Dimension186(L)×58W)×82(H)
Weight460g

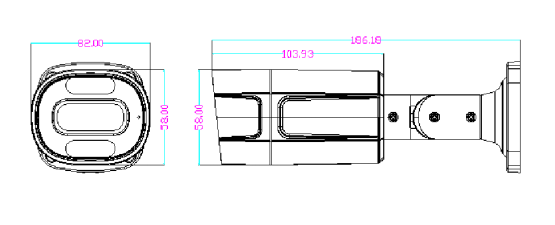

Drawing

Download

TYPEINSTRUCTIONDESCRIPTIONEFFECTIVE DATA
.pdfNIFP60J Datasheet2022-05-05
